Plan Number: 100821

  • 1 Full Bath(s)
  • 6 Car Garage
  • 80'0" Wide x 52'0" Deep
Available Foundation Types:
  • Slab

Order Code: 00WEB

  • PDF File: $1,525.00
  • 1 Set: $685.00
  • 5 Sets plus PDF File: $1,000.00
  • CAD File: $1,680.00
  • CAD File: $1,840.00
    Unlimited Build License issued on CAD File orders.
  • Right Reading (True) Reverse: $110.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
  • Additional Sets: $35.00

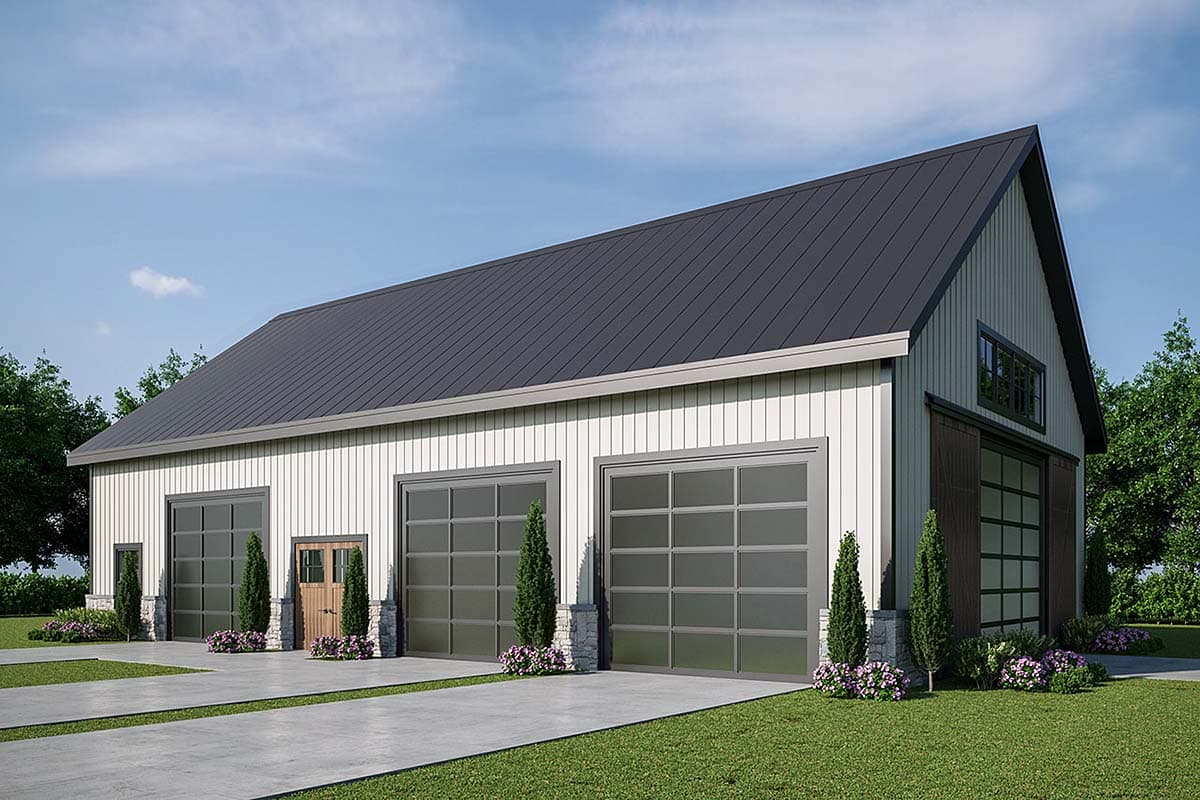

Plan Number 100821 | Order Code: 00WEB | Elevation

Reverse Plan

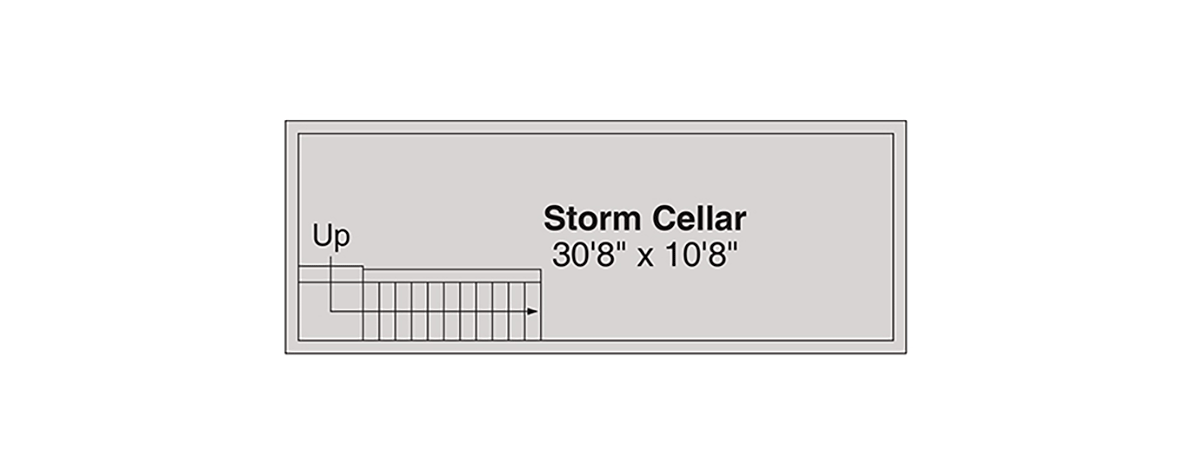

Plan Number 100821 | Order Code: 00WEB | Lower Floor Plan

Reverse Plan

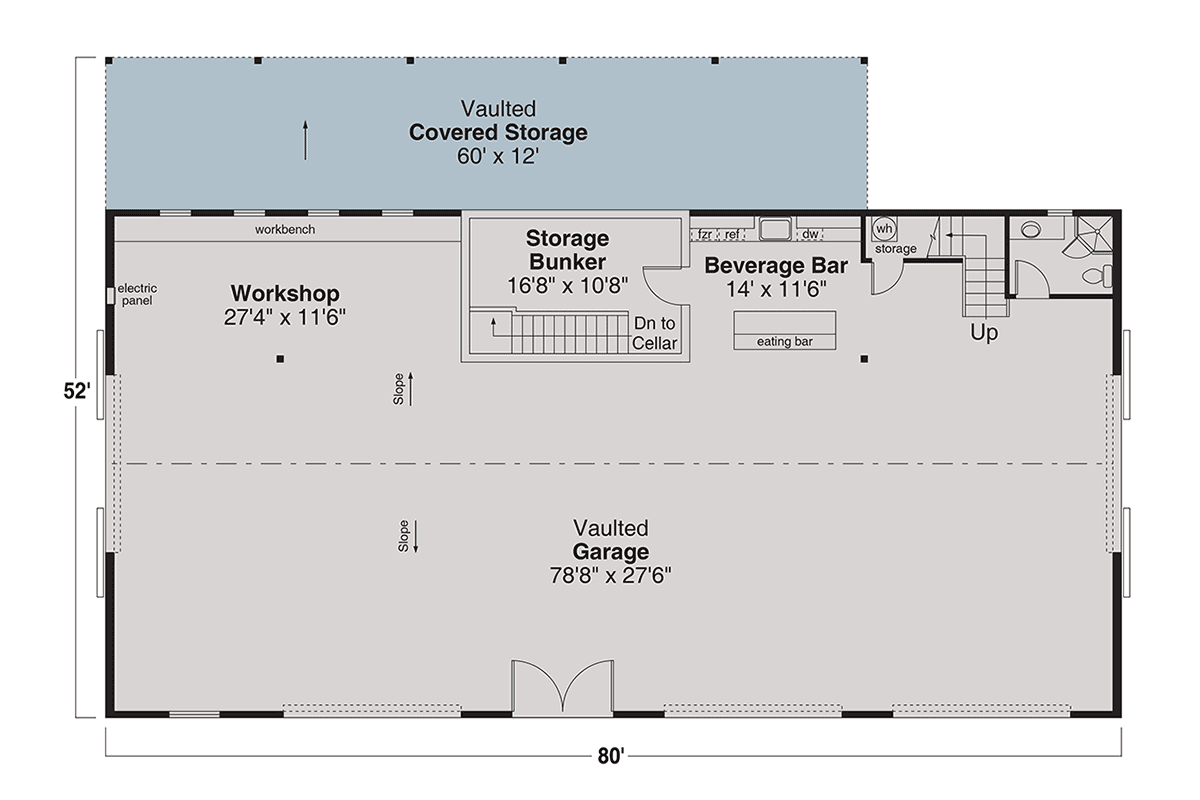

Plan Number 100821 | Order Code: 00WEB | First Floor Plan

Reverse Plan

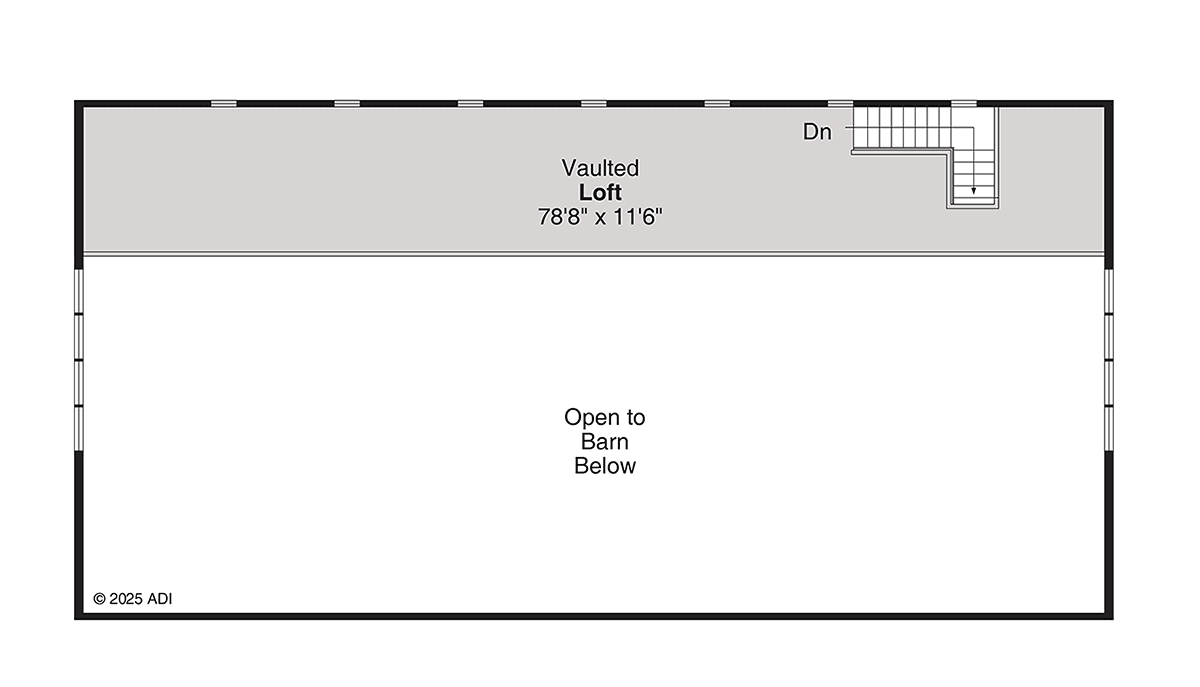

Plan Number 100821 | Order Code: 00WEB | Second Floor Plan

Reverse Plan

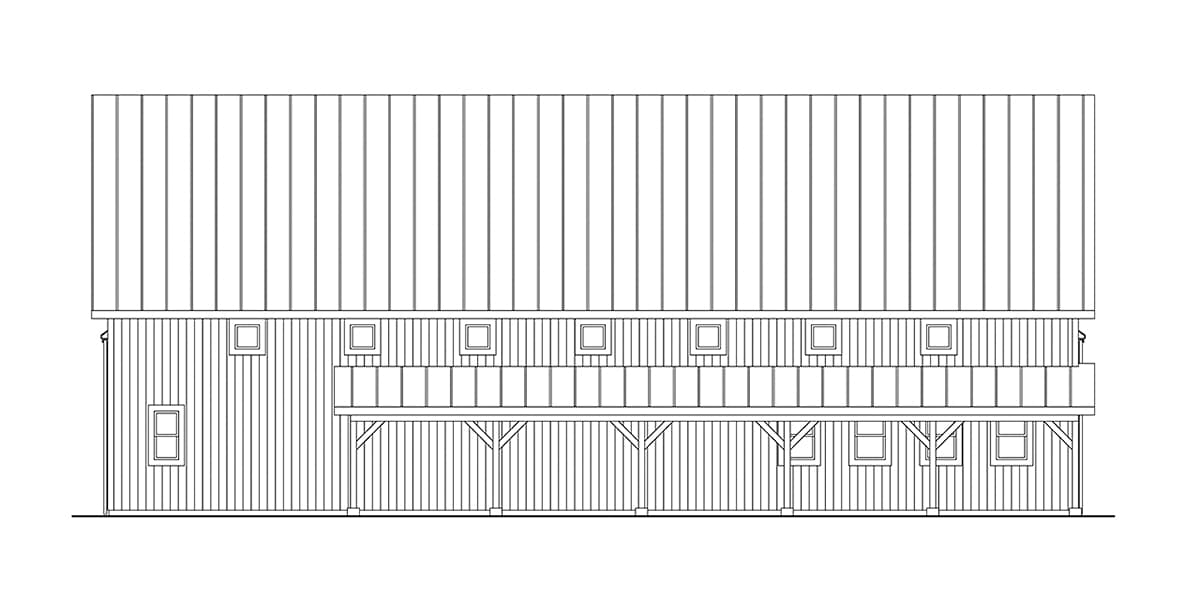

Plan Number 100821 | Order Code: 00WEB | Rear Elevation

Plan Number 100821 Specifications:

  • Bonus Area: 905
  • Garage Area: 3200
  • Garage Type: Detached
  • Garage Bays: 6
  • House Width: 80'0"
  • House Depth: 52'0"
  • Number of Stories: 2
  • Full Baths: 1
  • Max Ridge Height: 34'9" from Front Door Floor Level
  • Primary Roof Pitch: 10:12
  • Roof Load: 25 psf
  • Roof Framing: Truss and/or Stick
  • Porch: 720 sq ft
  • Main Ceiling Height: 16'
  • Upper Ceiling Height: 7'

Available Foundation Types:

  • Slab

Plan Number 100821 Plan Pricing:

  • PDF File: $1,525.00
  • 1 Set: $685.00 **
  • 5 Sets plus PDF File: $1,000.00
  • CAD File: $1,680.00
  • CAD File: $1,840.00
    Unlimited Build License issued on CAD File orders.
  • Right Reading (True) Reverse: $110.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
  • Additional Sets: $35.00

** 1 Set order does not include a License-To-Build. For bidding purposes only. Customer can upgrade order within 90 days.

Storm Cellar: 290 sq. ft.
Three front garage doors are 14' x 12'. Two side doors are 14' x 14'. Left & Right Exterior Walls have 2x8 framing
