Plan Number: 43788

  • 3 Car Garage
  • 70'0 Wide x 50'0 Deep
Available Foundation Types:
  • Slab

Order Code: 00WEB

  • PDF File: $1,525.00
  • 1 Set: $685.00
  • 5 Sets plus PDF File: $1,000.00
  • CAD File: $1,680.00
  • Right Reading (True) Reverse: $110.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
  • Additional Sets: $35.00

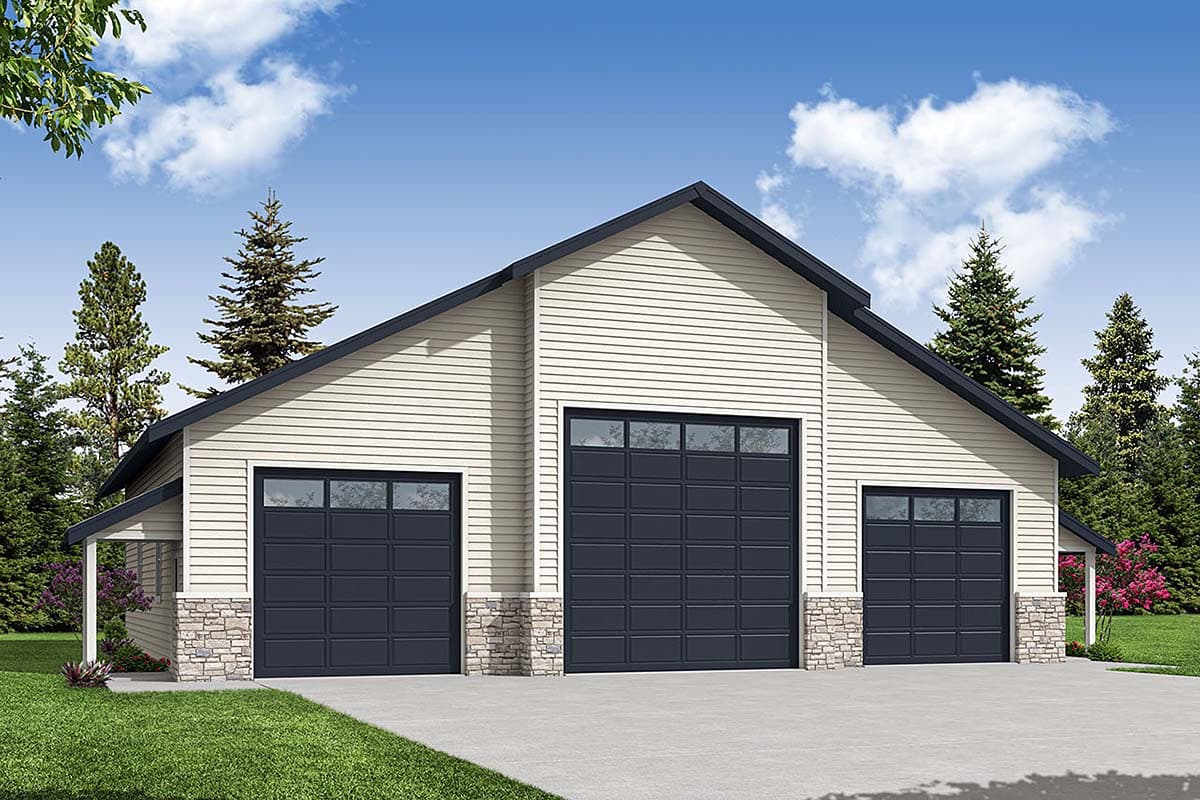

Plan Number 43788 | Order Code: 00WEB | Elevation

Reverse Plan

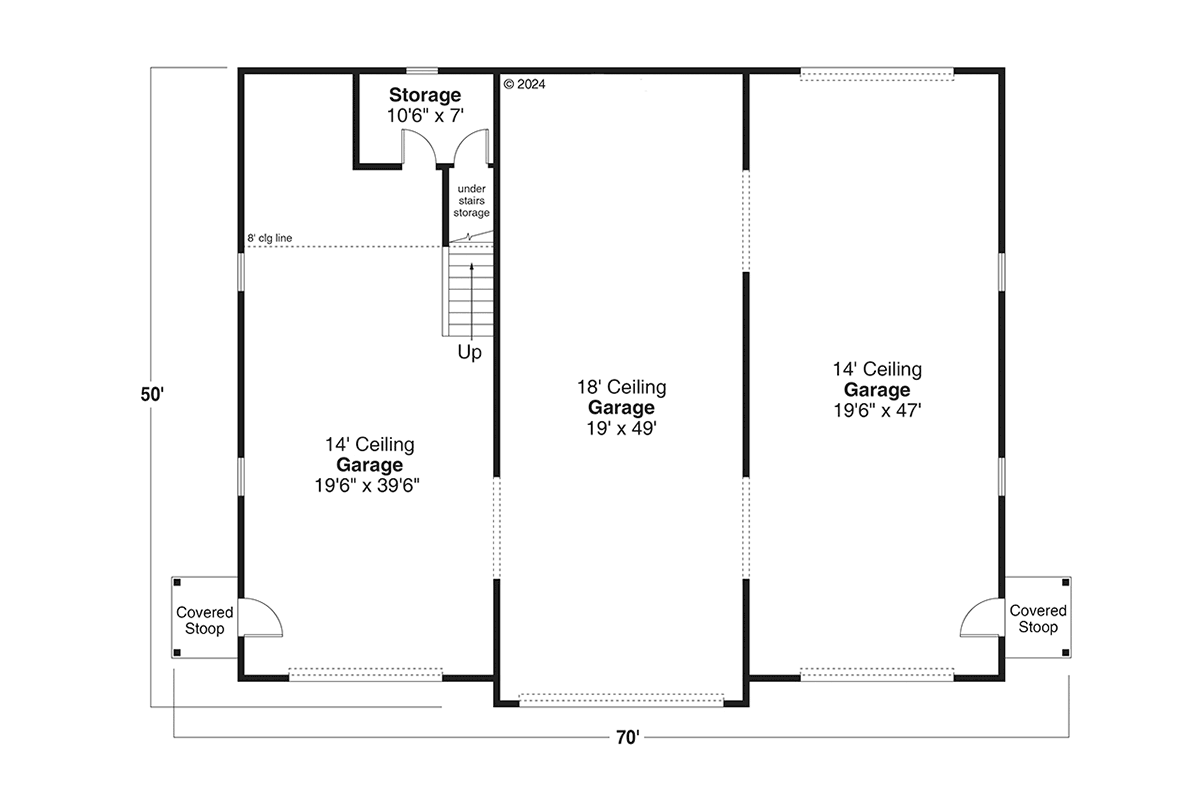

Plan Number 43788 | Order Code: 00WEB | First Floor Plan

Reverse Plan

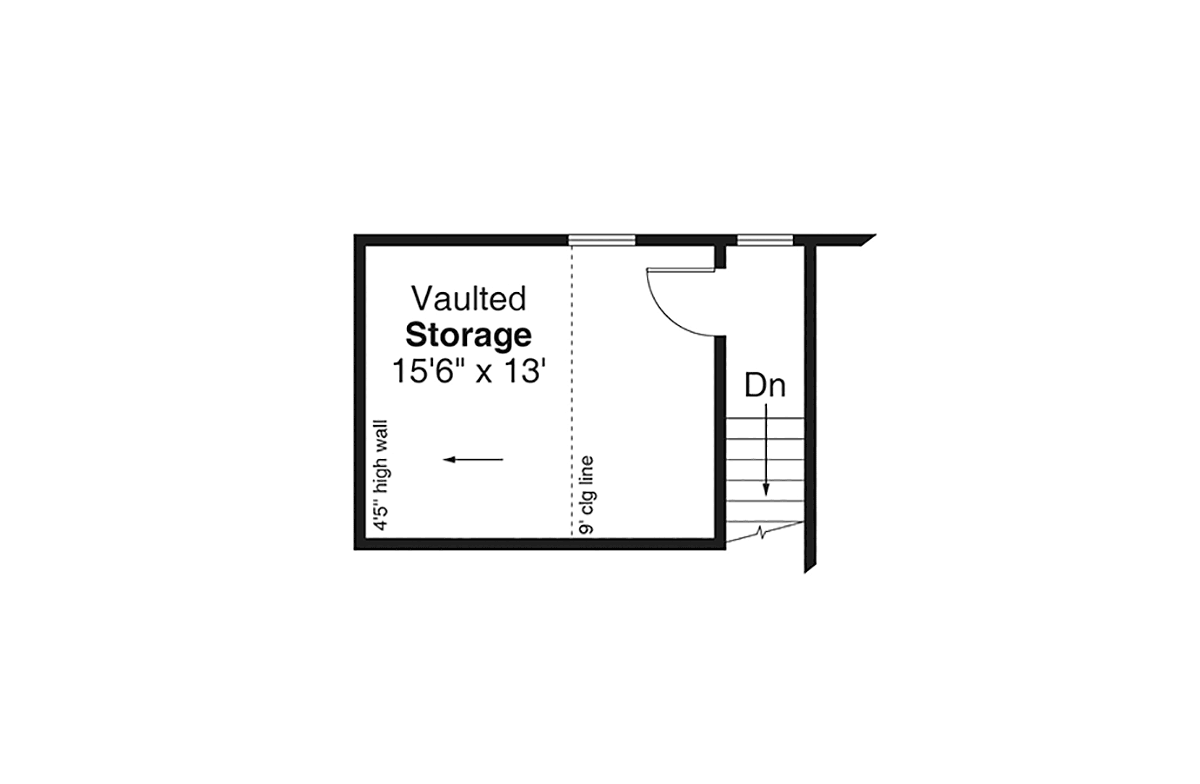

Plan Number 43788 | Order Code: 00WEB | Second Floor Plan

Reverse Plan

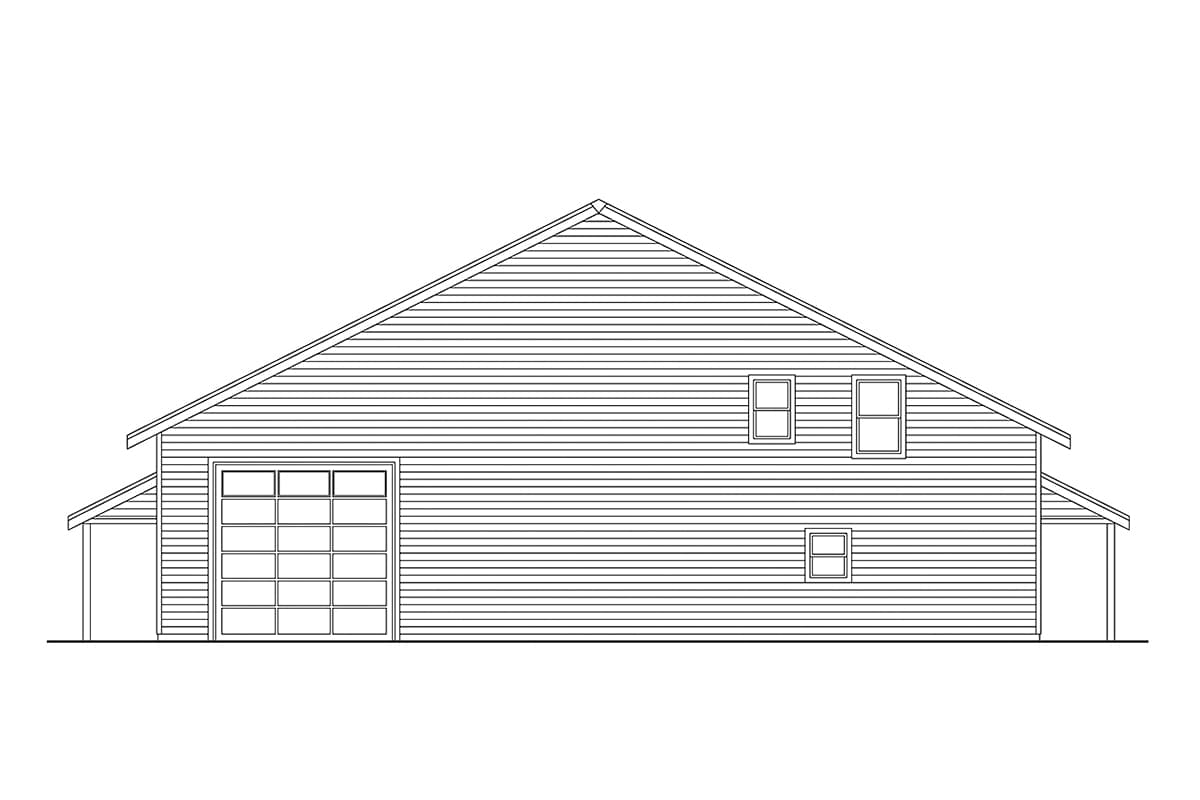

Plan Number 43788 | Order Code: 00WEB | Rear Elevation

Plan Number 43788 Specifications:

  • Garage Area: 2920
  • Garage Type: Detached
  • Garage Bays: 3
  • House Width: 70'0
  • House Depth: 50'0
  • Number of Stories: 2
  • Max Ridge Height: 30'0 from Front Door Floor Level
  • Primary Roof Pitch: 6:12
  • Roof Load: 25 psf
  • Roof Framing: Truss and/or Stick
  • Main Ceiling Height: 14'
  • Upper Ceiling Height: 9'

Available Foundation Types:

  • Slab

Plan Number 43788 Plan Pricing:

  • PDF File: $1,525.00
  • 1 Set: $685.00 **
  • 5 Sets plus PDF File: $1,000.00
  • CAD File: $1,680.00
  • Right Reading (True) Reverse: $110.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
  • Additional Sets: $35.00

** 1 Set order does not include a License-To-Build. For bidding purposes only. Customer can upgrade order within 90 days.

Upper Storage Area: 260 sq. ft.
Left and Right bays - All 3 garage doors are 12'x12'. Center door is 16'x16'
