Narrow Lot Style Multi-Family Plan 58523

Specifications

Total Living Area:	2214 sq ft
Main Living Area:	576 sq ft
Upper Living Area:	531 sq ft
Garage Type:	None
Foundation Types:	Basement
Exterior Walls:	2x6
House Width:	33'10
House Depth:	36'
Number of Stories:	2
Bedrooms:	6
Full Baths:	2
Half Baths:	4
Max Ridge Height:	30' from Front Door Floor Level
Primary Roof Pitch:	8:12
Roof Framing:	Truss
FirePlace:	Yes
Main Ceiling Height:	8'

Pricing

• PDF File: $903.00
• 1 Set: $798.00 **
• 5 Sets: $1,008.00
• 8 Sets: $1,113.00
• Reproducible Set: $1,113.00
• CAD File: $1,806.00
  Single Build License issued on CAD File orders.
• Right Reading (True) Reverse: $175.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $60.00

** 1 Set order does not include a License-To-Build. For bidding purposes only. Customer can upgrade order within 90 days.

Available Foundation Types:

• Basement : No Additional Fee
  Total Living Area may increase with Basement Foundation option.

Available Exterior Wall Types:

• 2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

What is Included in this House Plan?

Cover Sheet Landscaped architectural rendering of the exterior help the owner/builder visualize the new home completed.

Foundation Plan 1/4 inch scale basement and foundation plans with all necessary dimensions and notations.

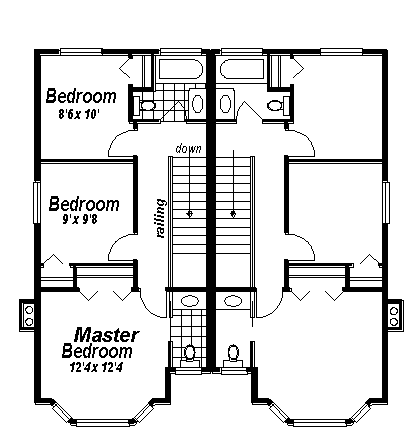

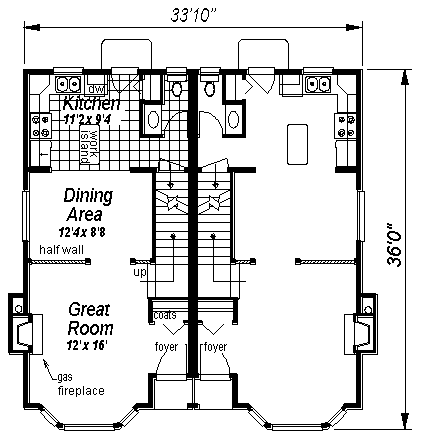

Floor Plans Detailed 1/4 inch scale main and upper story plans with complete dimensions. Floor plans also include room sizes, detail cross section keys and location of plumbing fixtures.

Electrical Schematic Plans 3/16 inch scale electrical plans showing light fixtures, switches and plug locations.

Cross Sections 1/4 inch scaled sections of the foundation, interior and exterior walls, floor and roof details for design and construction methods.

Site Plan A stock plot plan with a detailed aerial view of the home situated on a rectangular lot is provided.

Exterior Elevations 1/4 inch scale exterior elevation drawings of the front, rear and both sides of the house. These drawings show window and door locations as well as general material specifications.

All plans are drawn with 2x6 exterior walls.

Lumber, windows, doors, nails, insulation and trims. No HVAC or electrical wiring included.
